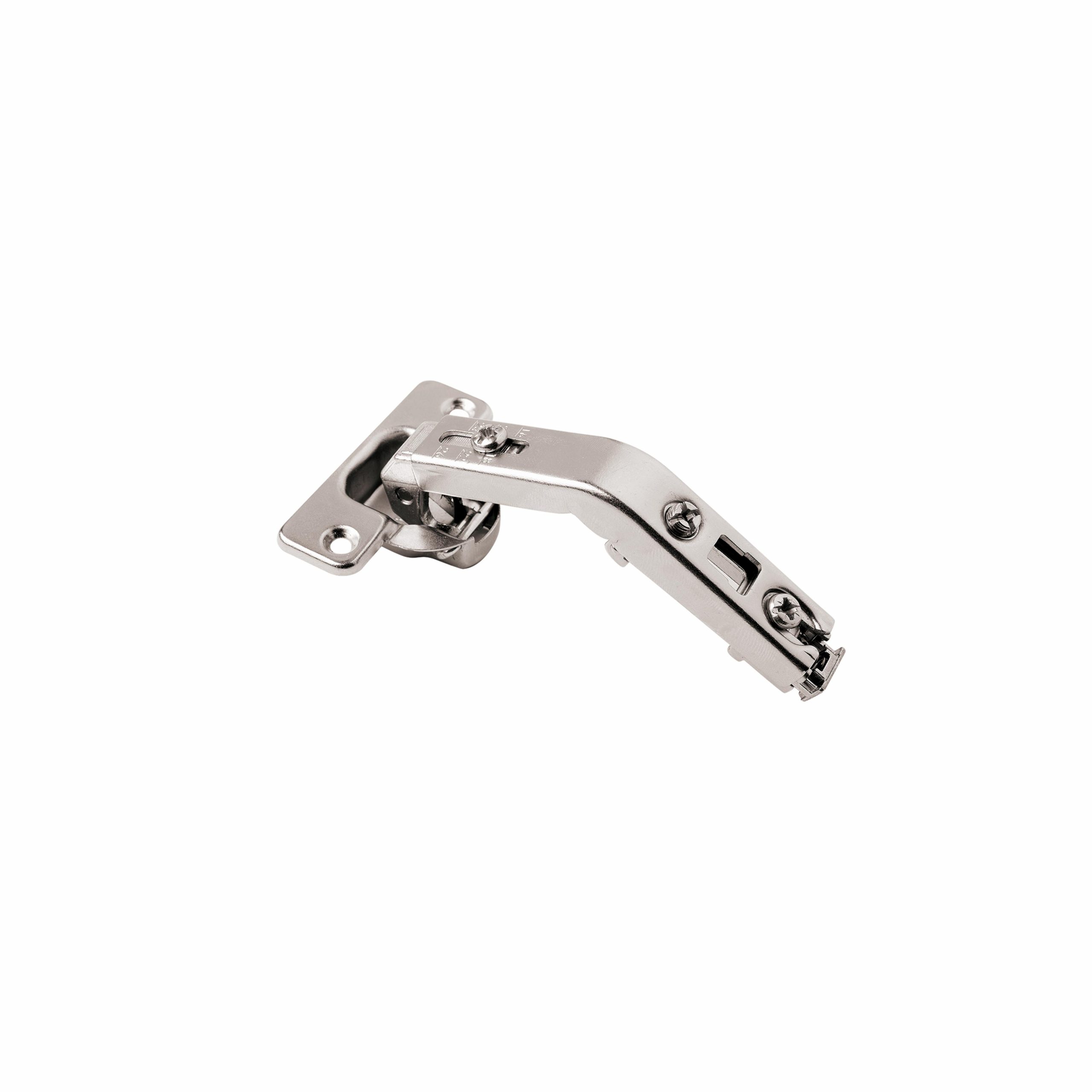

Double door hinge 135º X91N, Screw-on
258.00 L
Përshkrim

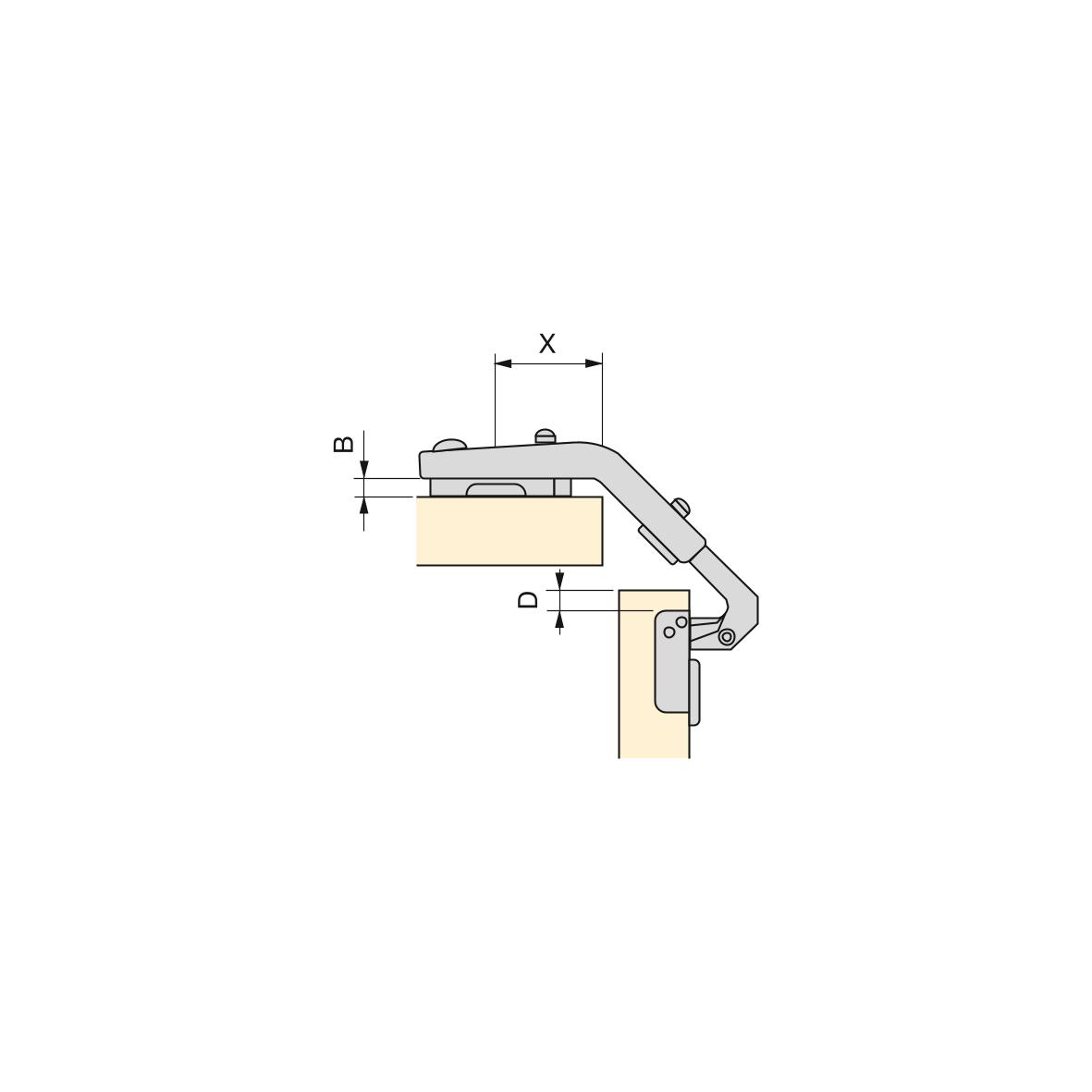

The X91N double door hinge is designed to be used on corner double doors, allowing both doors to be opened at the same time. The opening angle is 135 °. It does not have a damping piston, so it is advisable to install it together with magnetic closures. It allows a three-dimensional and depth adjustment by means of eccentric, guaranteeing a perfect final arrangement. In addition, it has an automatic mechanism for coupling to the supplement. It can be used on doors from 14 to 26 mm thick. It is made of nickel-plated steel with great resistance and durability. The edge clearance for drilling the 35mm cup is 3 to 7mm. The packaging brings 200 units.
Veçoritë e produktit
- Çmimi për një copë
- Paketimi 200 copë/kuti
- Hinge to plate quick fixing system
- For 14 ~ 26 mm door thickness
- Adjustable in 3 dimensions

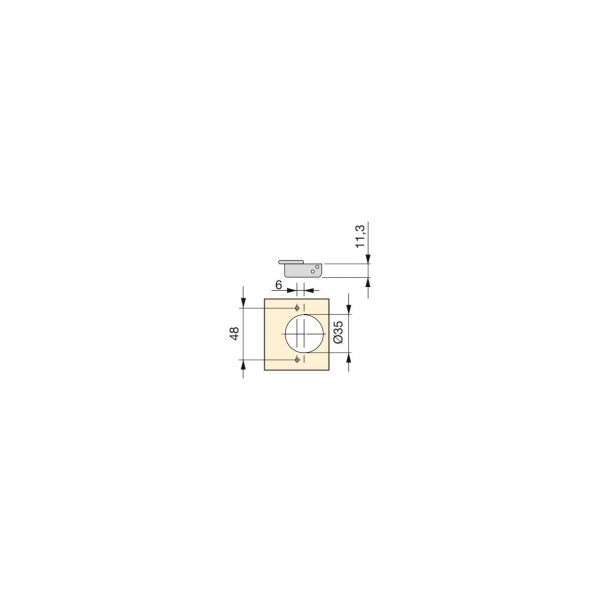

- Distance to cup bore edge D = 3 ~ 7 mm
- Depth adjustment by cam
