Menteshë 165-Gradë X91-soft
582.00 L
Përshkrim

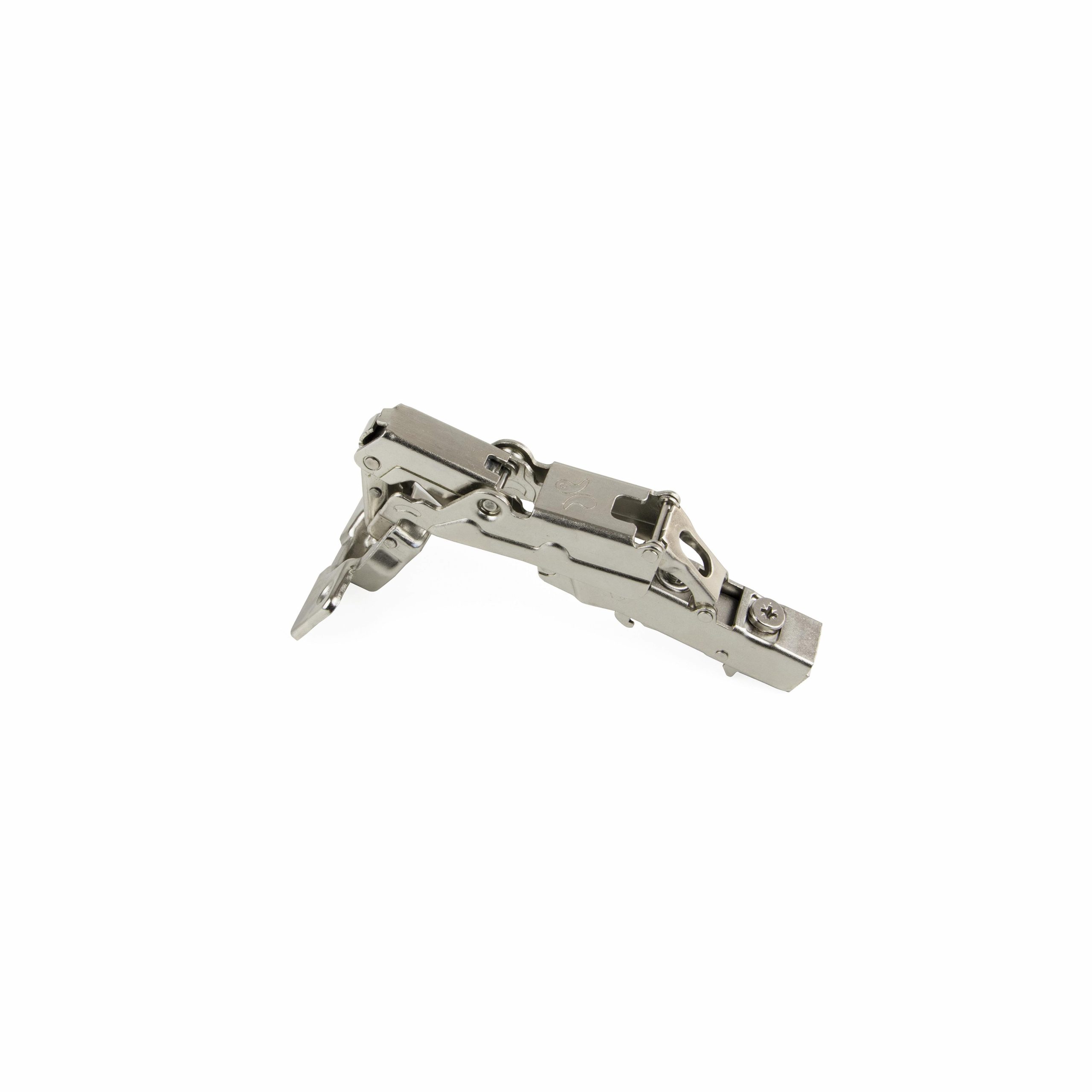

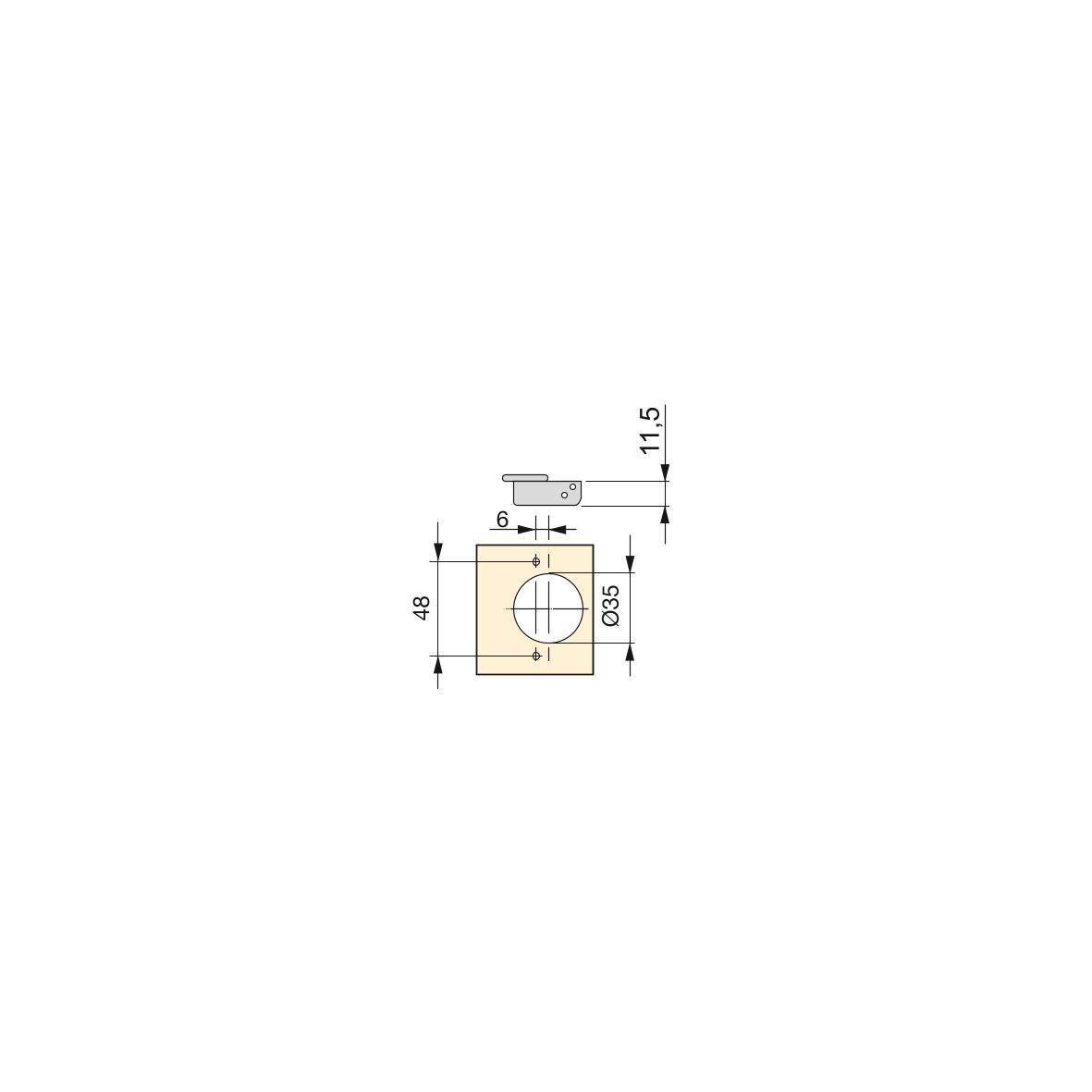

Straight hinge with a 35 mm diameter cup that allows an opening angle of 165 ° with screw installation. It has a shock-absorbing piston that guarantees a smooth closing and an automatic coupling system to the insert by sliding. In addition, it is three-dimensionally adjustable and eccentrically, so it is possible to achieve the optimal adjustment in any case. For its installation, a separation range of 3 to 7 mm must be considered for the perforation of the cup. This hinge is made of strong and durable steel with a nickel-plated finish. It is specially designed for doors from 14 to 26 mm thick and the packaging presentation is 200 units.
Veçoritë e produktit
- Çmimi për një copë
- Paketimi: 100 copë/kuti
- Integrated soft closing mechanism.
- Hinge to plate quick fixing system.
- For 14 ~ 26 mm door thickness.
- Adjustable in 3 dimensions.

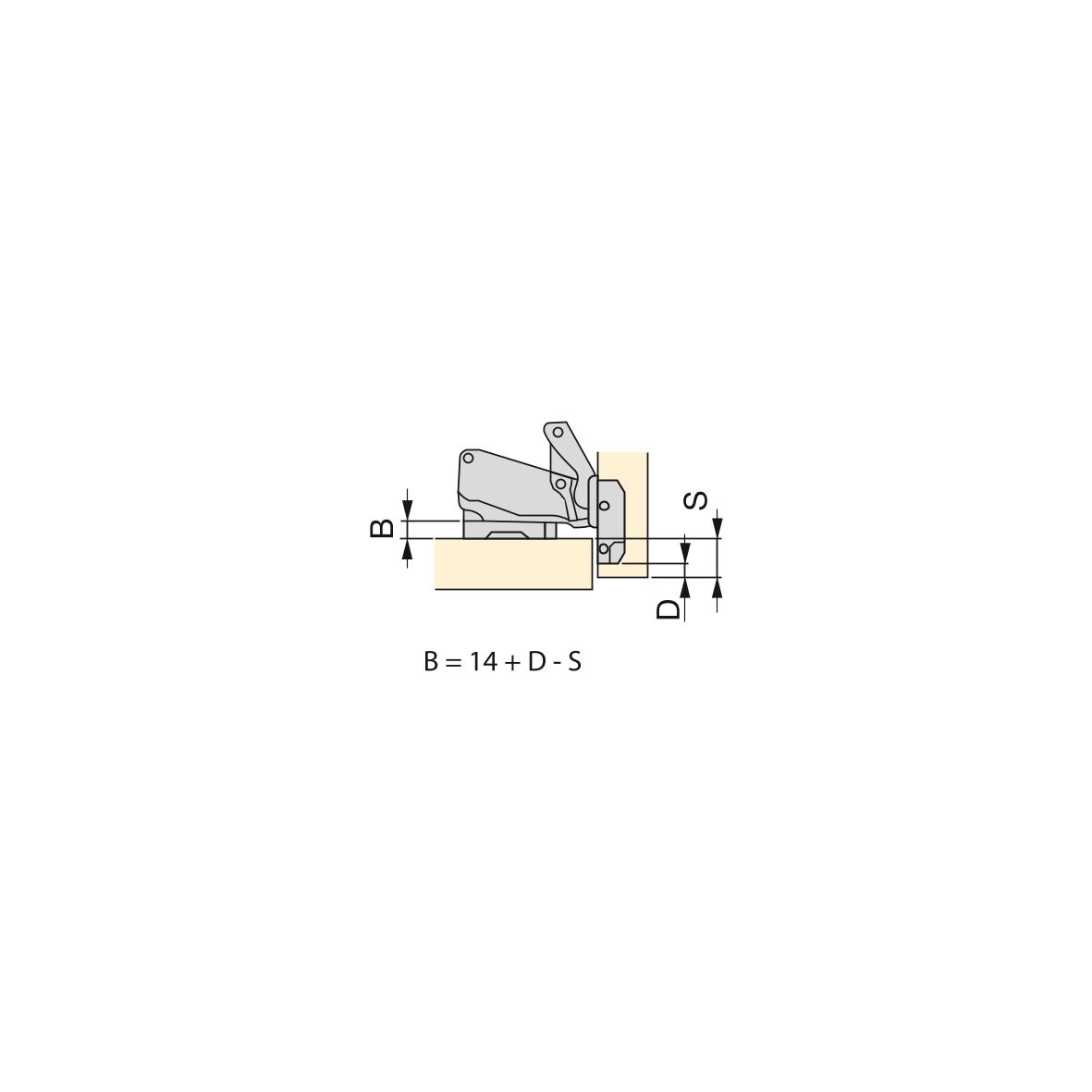

- Distance to cup bore edge D= 3 ~ 7 mm.
- Depth adjustment by cam.
