Menteshë e drejtë X95
41.00 L
Përshkrim

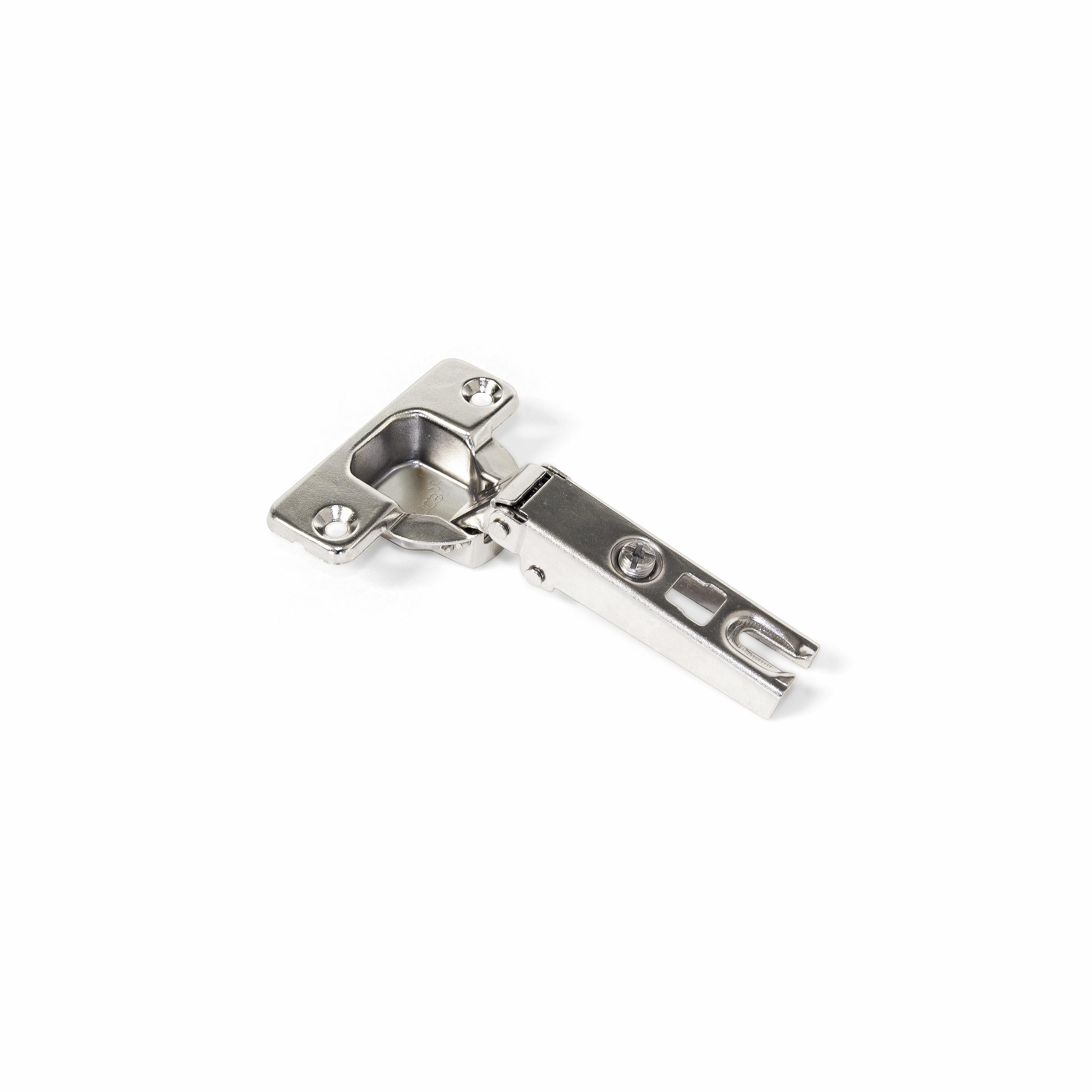

The X95 Nickel-plated straight hinge has a differentiated spring closing mechanism. It is made of steel with a nickel-plated finish for greater protection of the piece. Due to its design, it is recommended to be installed on doors with a minimum thickness of 14 mm and a maximum of 23 mm. The regulation of the X95 straight hinge is three-dimensional for greater precision and better splicing. Its opening range is 110 °, also the cup drilling range is D = 3 ~ 8mm. The cup has a circumference dimension of 35 mm. The installation and fixing of this hinge in panels are through screws, its packaging contains 200 units of straight hinges.
Veçoritë e produktit
- Çmimi për një copë
- Paketimi: 200 copë/kuti
- Spring closure.

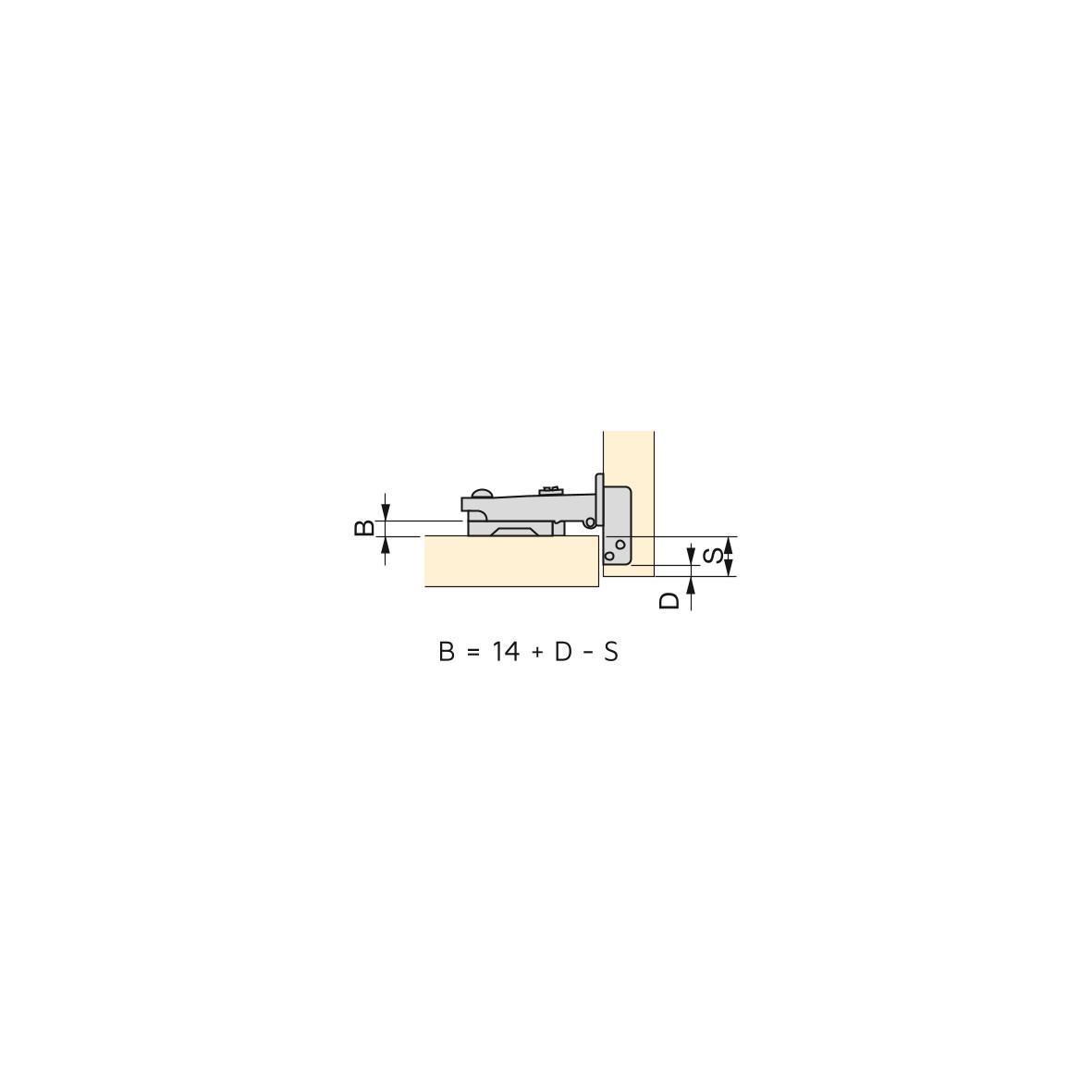

- Door thickness from 14 to 23 mm.
- Adjustable in 3 dimensions.

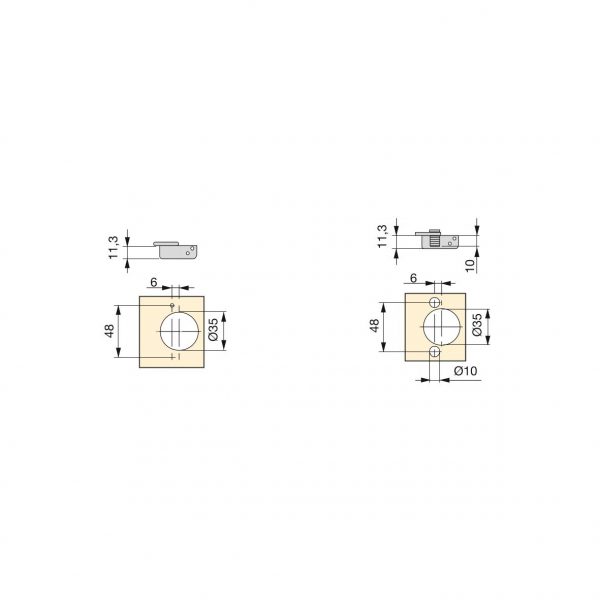

- Distance to cup bore edge D = 3 ~ 8 mm.
Share This Items :
Përshkrim
The X95 Nickel-plated straight hinge has a differentiated spring closing mechanism. It is made of steel with a nickel-plated finish for greater protection of the piece. Due to its design, it is recommended to be installed on doors with a minimum thickness of 14 mm and a maximum of 23 mm. The regulation of the X95 straight hinge is three-dimensional for greater precision and better splicing. Its opening range is 110 °, also the cup drilling range is D = 3 ~ 8mm. The cup has a circumference dimension of 35 mm. The installation and fixing of this hinge in panels are through screws, its packaging contains 200 units of straight hinges.
