Menteshë me gungë X95
41.00 L
Përshkrim

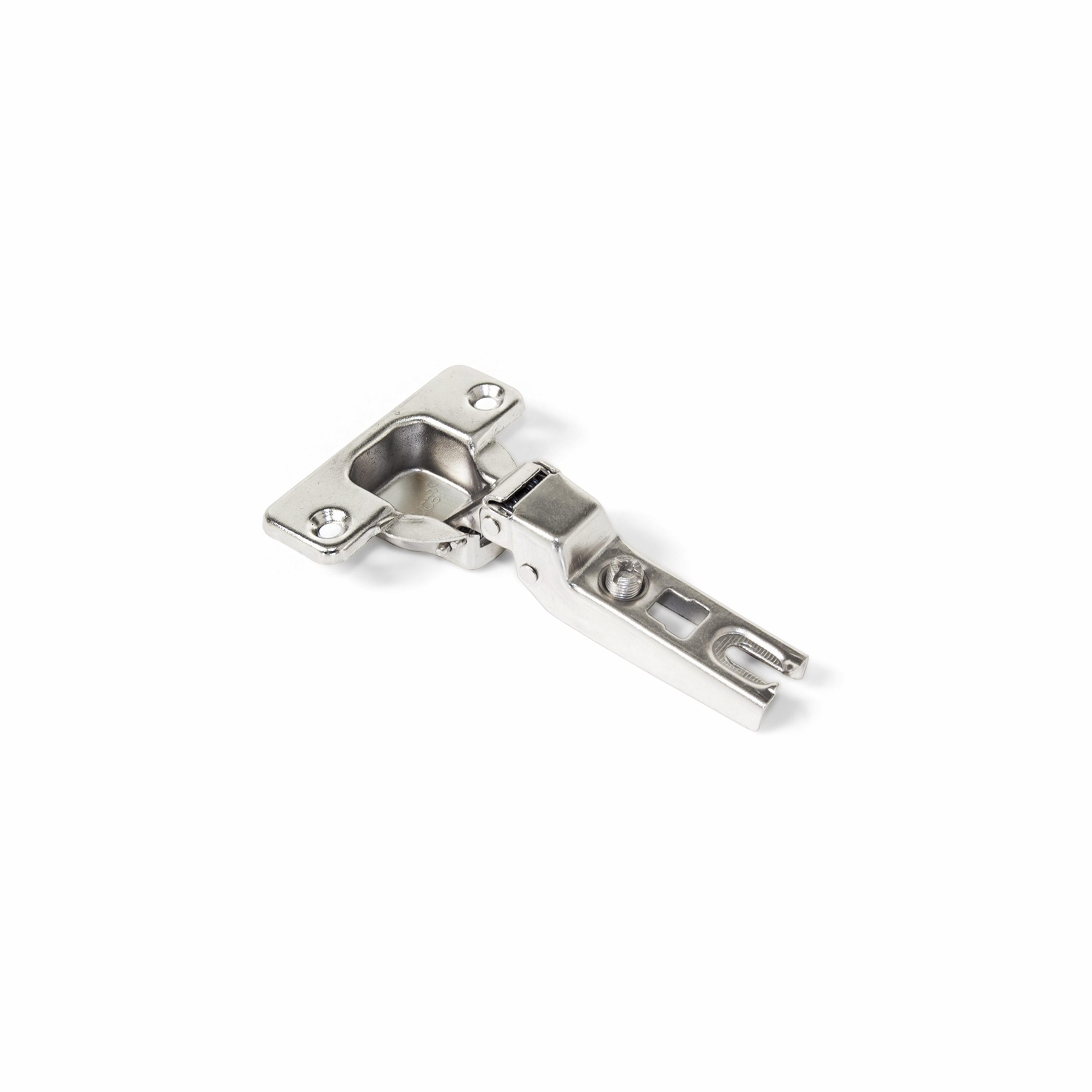

X95 Nickel-plated elbow hinge has a design that allows precise installation in adjoining cabinets, it is regulated in a three-dimensional way to improve the joint. It is recommended to be installed on doors and panels with a thickness between 14 mm and 23 mm. It has a differentiated spring mechanism for closing. It is made of strong steel with a nickel-plated finish for anti-corrosion protection. Its aperture range is 110 °. The cup drilling range is D = 3 ~ 8mm, it has a circumference dimension of 35mm. The installation and fixing in panels of this hinge are through screws, its packaging contains 200 units of elbow hinges.
Veçoritë e produktit
- Çmimi për një copë
- Paketimi: 200 copë/kuti
- Spring closure.
- Door thickness from 14 to 23 mm.
- Adjustable in 3 dimensions.

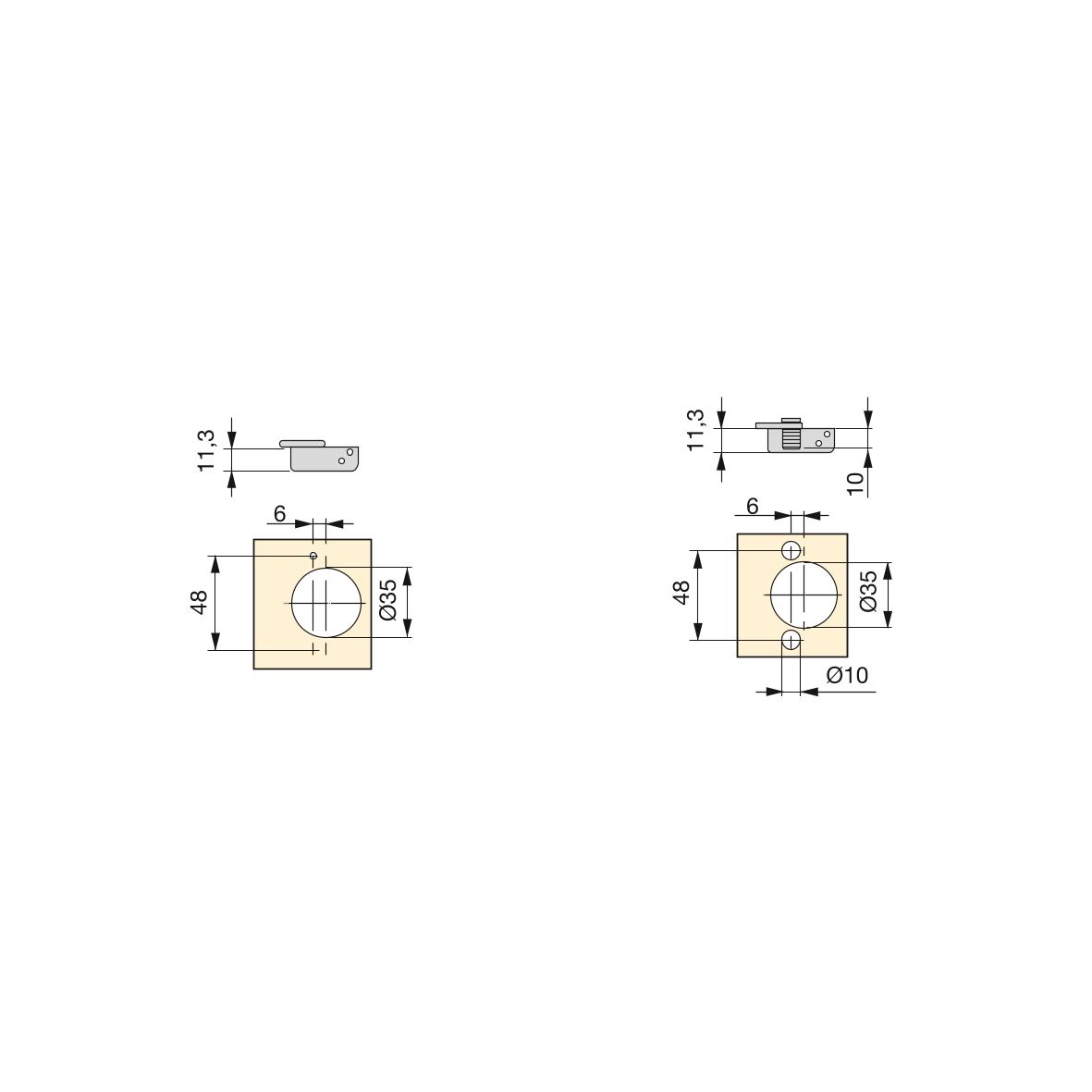

- Distance to cup bore edge D = 3 ~ 8 mm.
Share This Items :
Përshkrim
X95 Nickel-plated elbow hinge has a design that allows precise installation in adjoining cabinets, it is regulated in a three-dimensional way to improve the joint. It is recommended to be installed on doors and panels with a thickness between 14 mm and 23 mm. It has a differentiated spring mechanism for closing. It is made of strong steel with a nickel-plated finish for anti-corrosion protection. Its aperture range is 110 °. The cup drilling range is D = 3 ~ 8mm, it has a circumference dimension of 35mm. The installation and fixing in panels of this hinge are through screws, its packaging contains 200 units of elbow hinges.
