Menteshë me super-gungë X91-soft
179.00 L – 268.00 L
Përshkrim

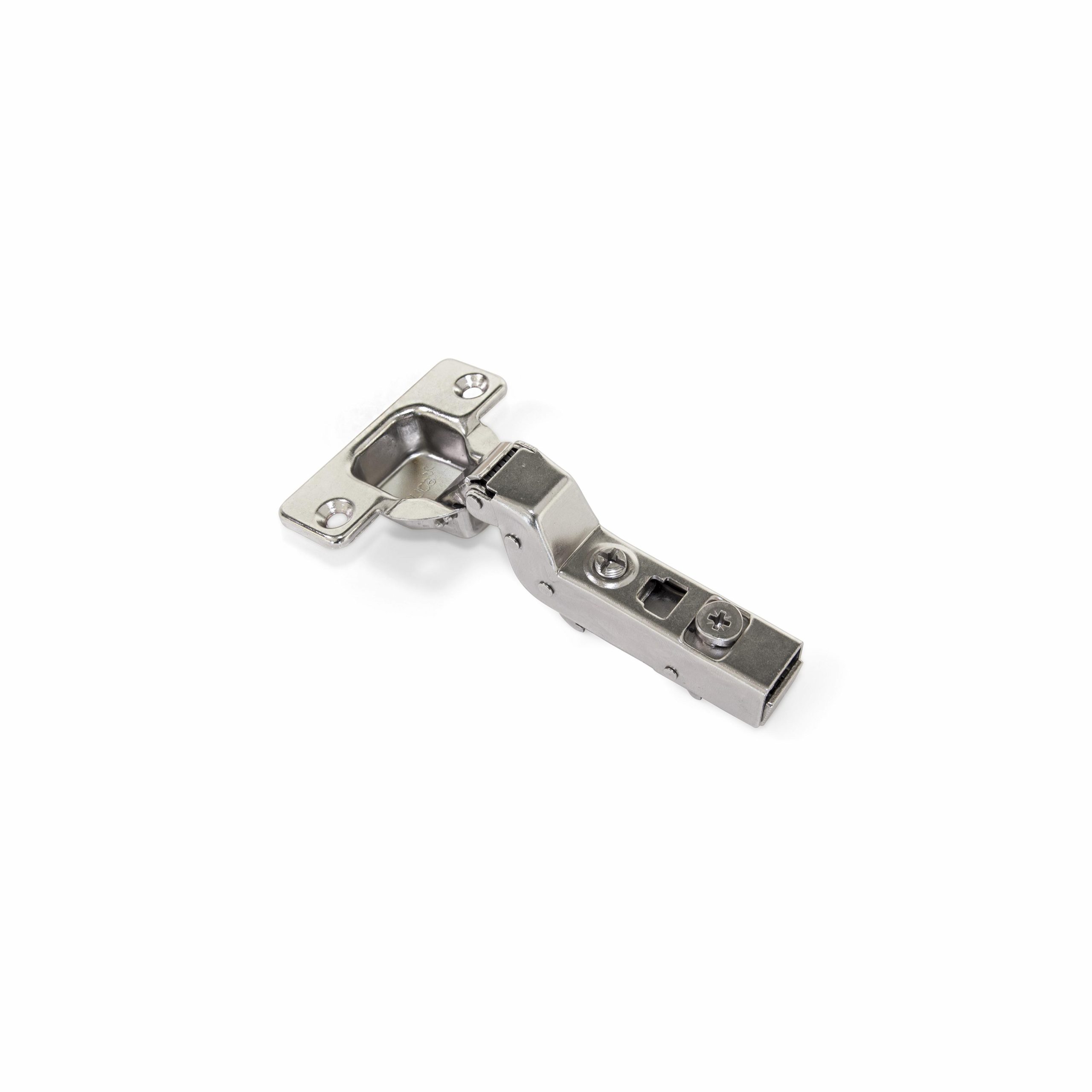

X91 nickel-plated super elbow hinge. It is made of steel and nickel finish for greater protection. It has an elbow with a greater angle, spring both in closing and opening, and a damping piston for a smooth movement of the door. Its adjustment is three-dimensional and the depth adjustment is made by eccentric It works on doors with a thickness between 14 mm and 24 mm. The supplied opening margin is 105 ° and the cup drilling range D = 3 ~ 7mm. The cup has a dimension of Ø 35, the mounting system of the hinge to the supplement of this series is automatic and its packaging contains 200 units of X91 super elbow hinges.
Veçoritë e produktit
- Çmimi për një copë
- Paketimi: 200 copë/kuti
- Integrated soft closing mechanism.
- Hinge to plate quick fixing system.
- For 14 ~ 24 mm door thickness.
- Adjustable in 3 dimensions.

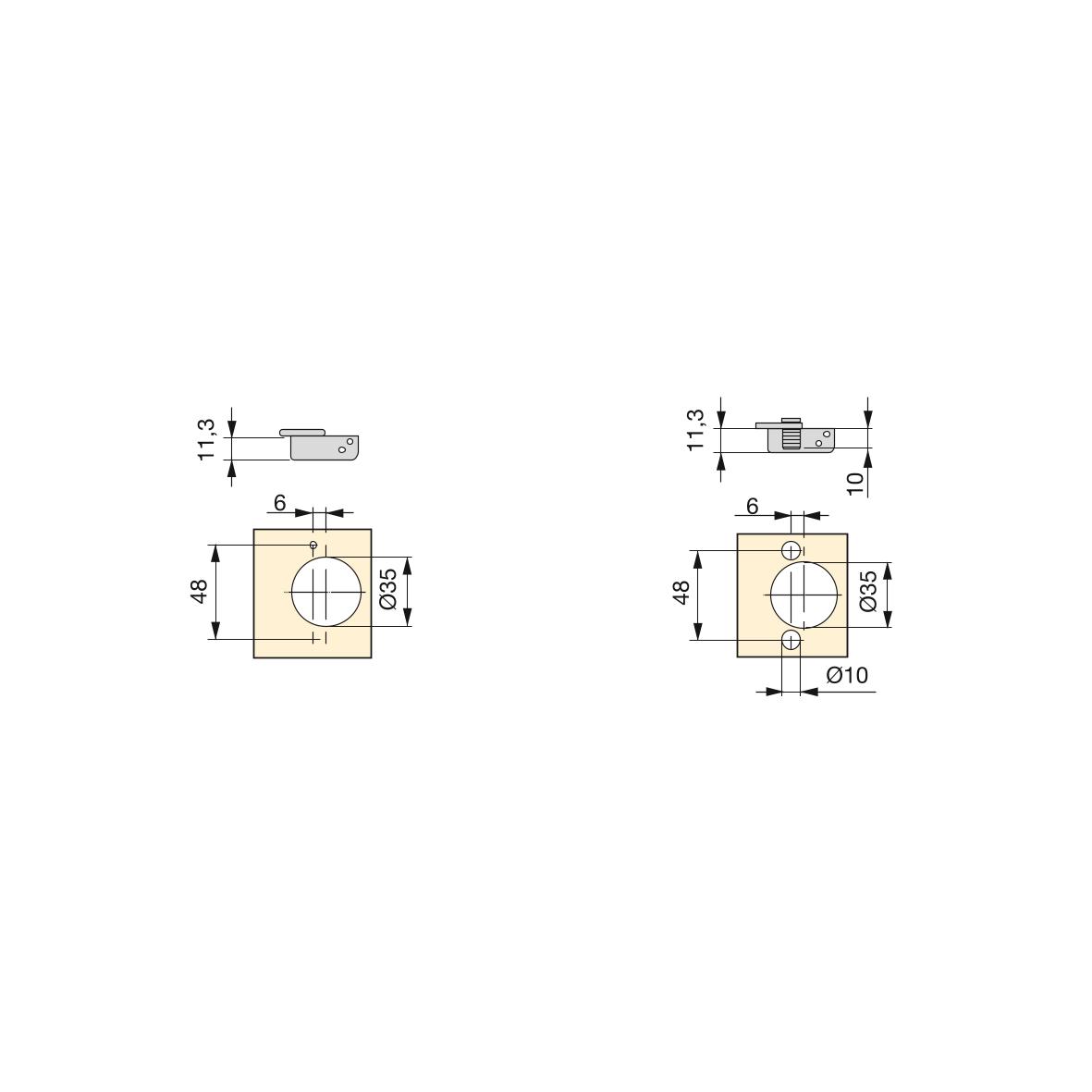

- Distance to cup bore edge d = 3 ~ 7 mm.
- Depth adjustment by cam.
- Spring in opening and closing.
Share This Items :
Përshkrim
X91 nickel-plated super elbow hinge. It is made of steel and nickel finish for greater protection. It has an elbow with a greater angle, spring both in closing and opening, and a damping piston for a smooth movement of the door. Its adjustment is three-dimensional and the depth adjustment is made by eccentric It works on doors with a thickness between 14 mm and 24 mm. The supplied opening margin is 105 ° and the cup drilling range D = 3 ~ 7mm. The cup has a dimension of Ø 35, the mounting system of the hinge to the supplement of this series is automatic and its packaging contains 200 units of X91 super elbow hinges.
