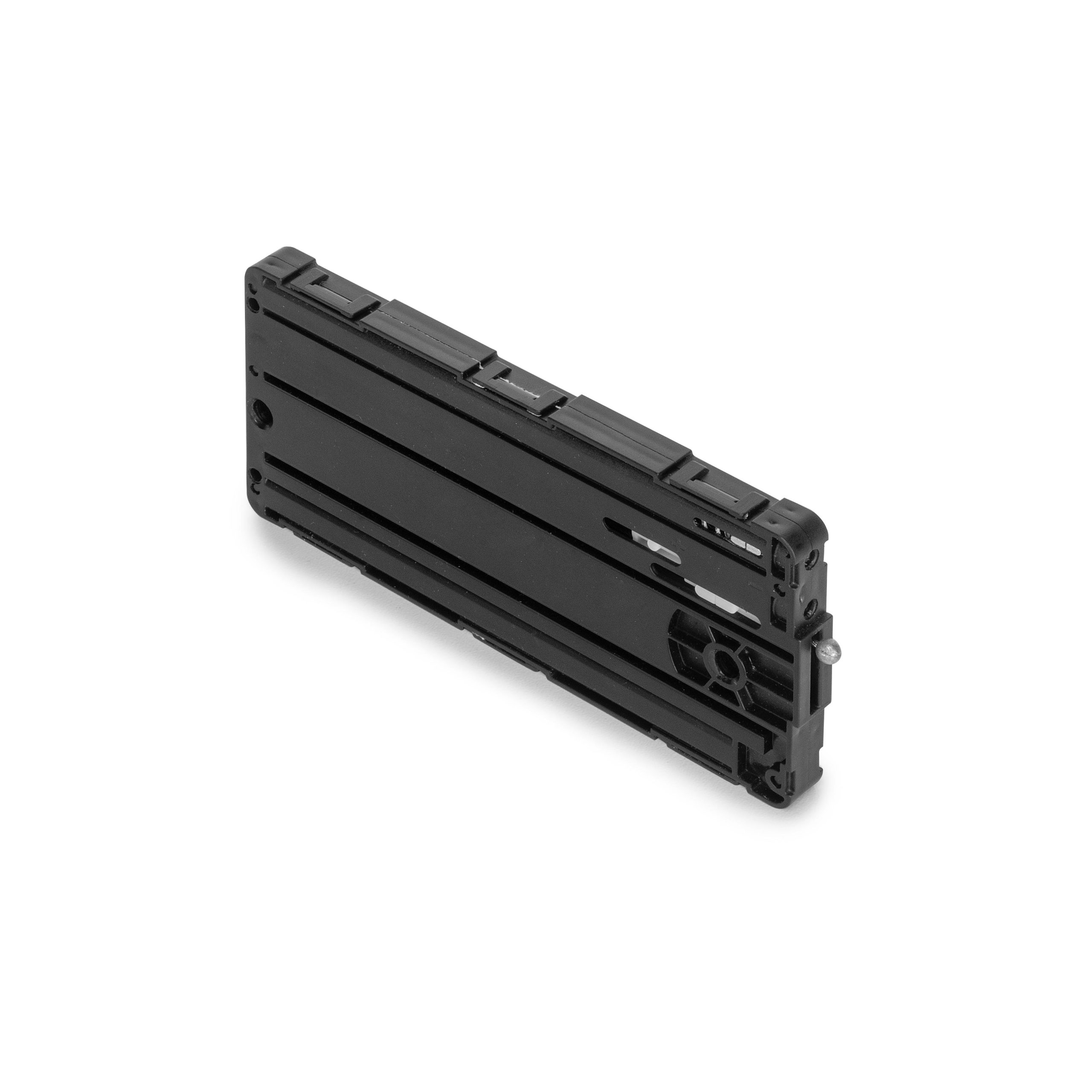

Slimwinch folding door mechanism

SKU 1027 Category

6,248.00 L

Përshkrim

The mechanism for Slimwinch hinged doors with steel cable with damped opening and asistido steel, is the best solution for your home and living room furniture.
Has a reduced space that allows integration into the furniture, mounted on the surface or built-in with a mechanism on the side of the module, minimizing the visual impact.
It is available in different sizes that can be used with doors from 200 mm to 480 mm high. Also set regulation both of the length of the cable for the final position in front of the door, as well as the direction of the wheel for the brake effect.
It is a single-handed mechanism that can be mounted indistinctly in the left or right side and is made of black plastic.

Shqyrtime

Ende pa shqyrtime.

Bëhuni i pari që shqyrton “Slimwinch folding door mechanism”

Adresa juaj email s’do të bëhet publike. Fushat e domosdoshme janë shënuar me një *

Veçoritë e produktit

  • Çmimi për një copë
  • Paketimi: 10 copë/kuti
  • Slimwinch mechanism for swing doors using steel cable with soft opening and assisted closing.

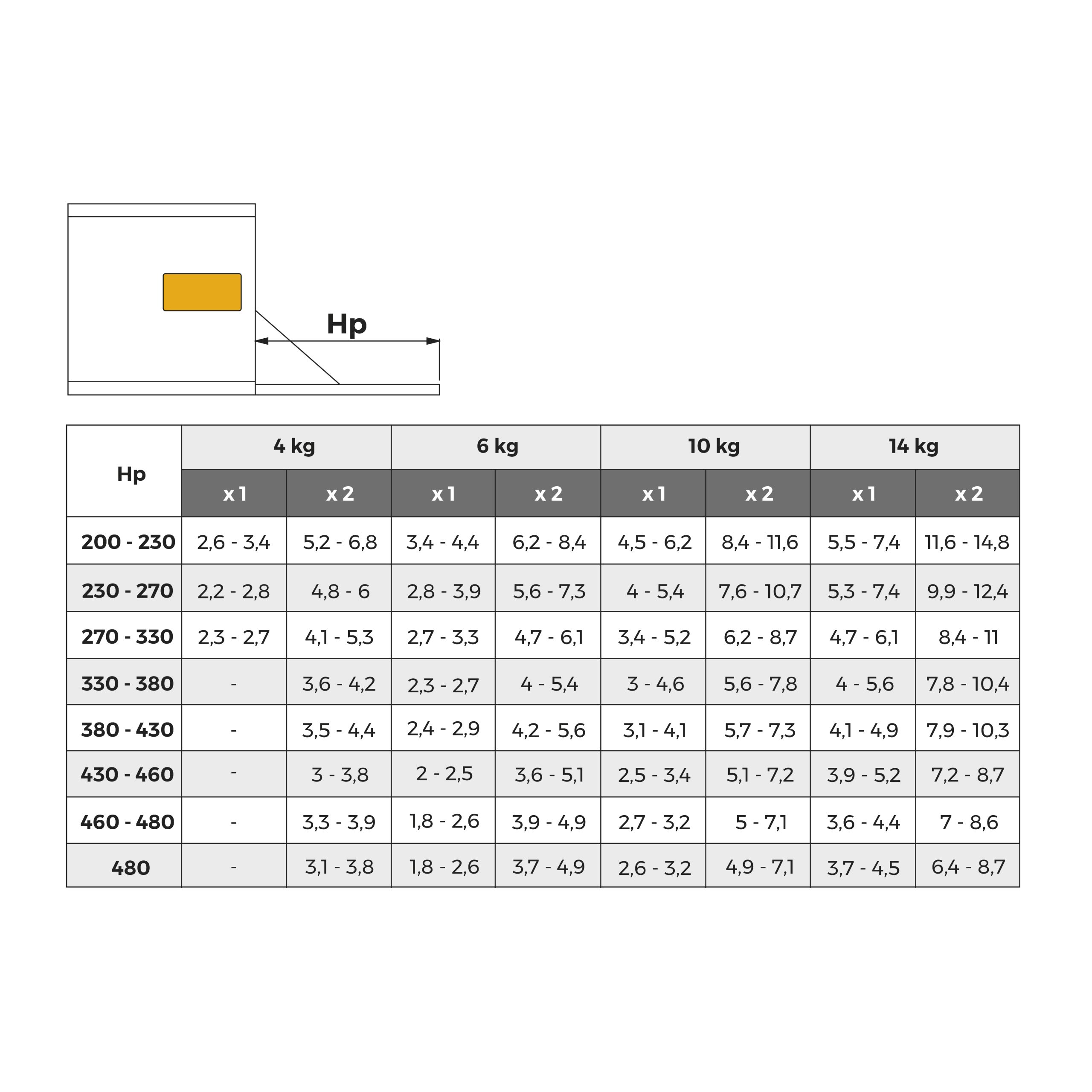

  • It has a reduced thickness of only 12 mm and a force of 14 kg that can be used with doors from 200 mm to 480 mm high (see selection tables).
  • It has regulation of both the length of the cable for the final position in door opening (-8º/+21º), and the force of the spring for the brake effect (by means of an Allen screw).

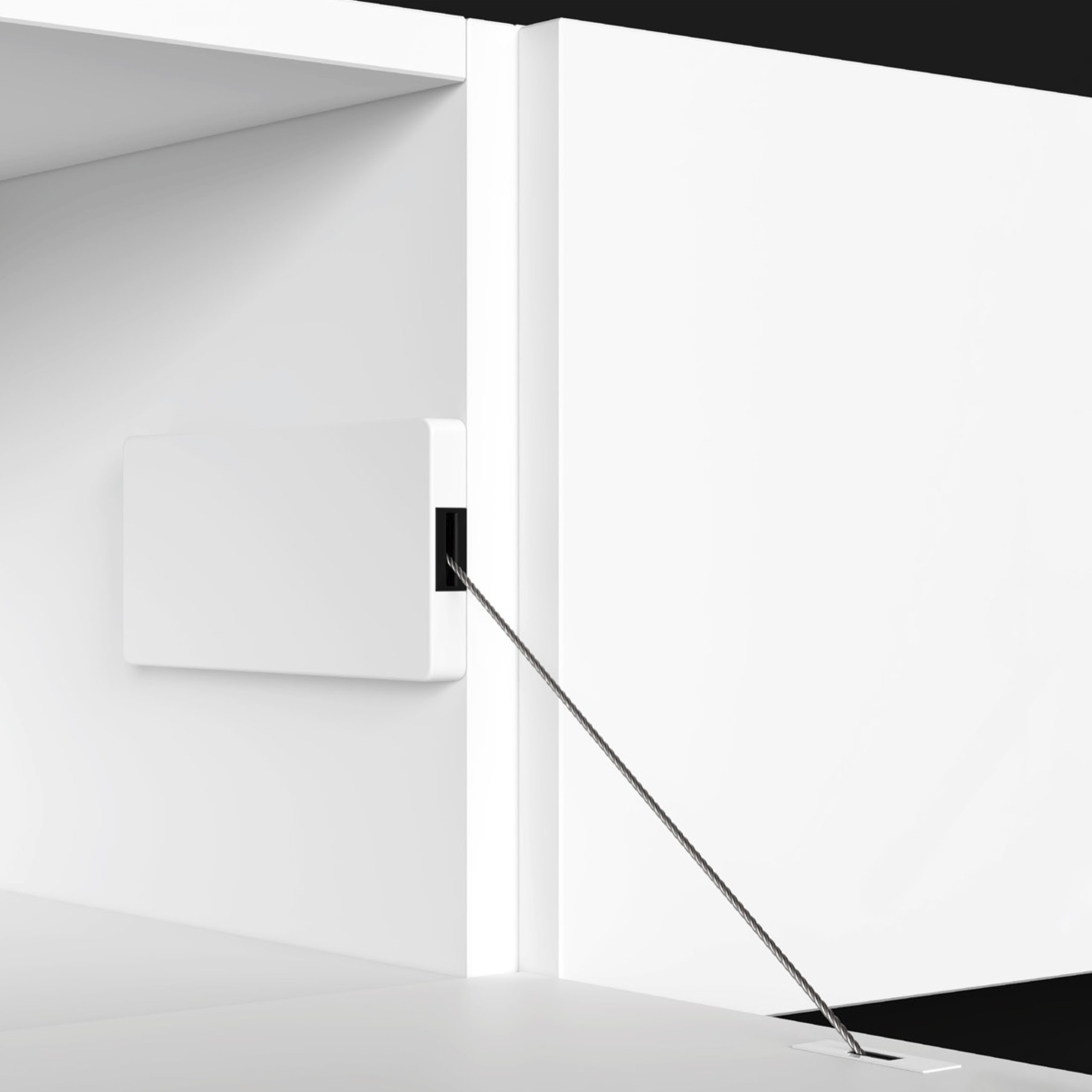

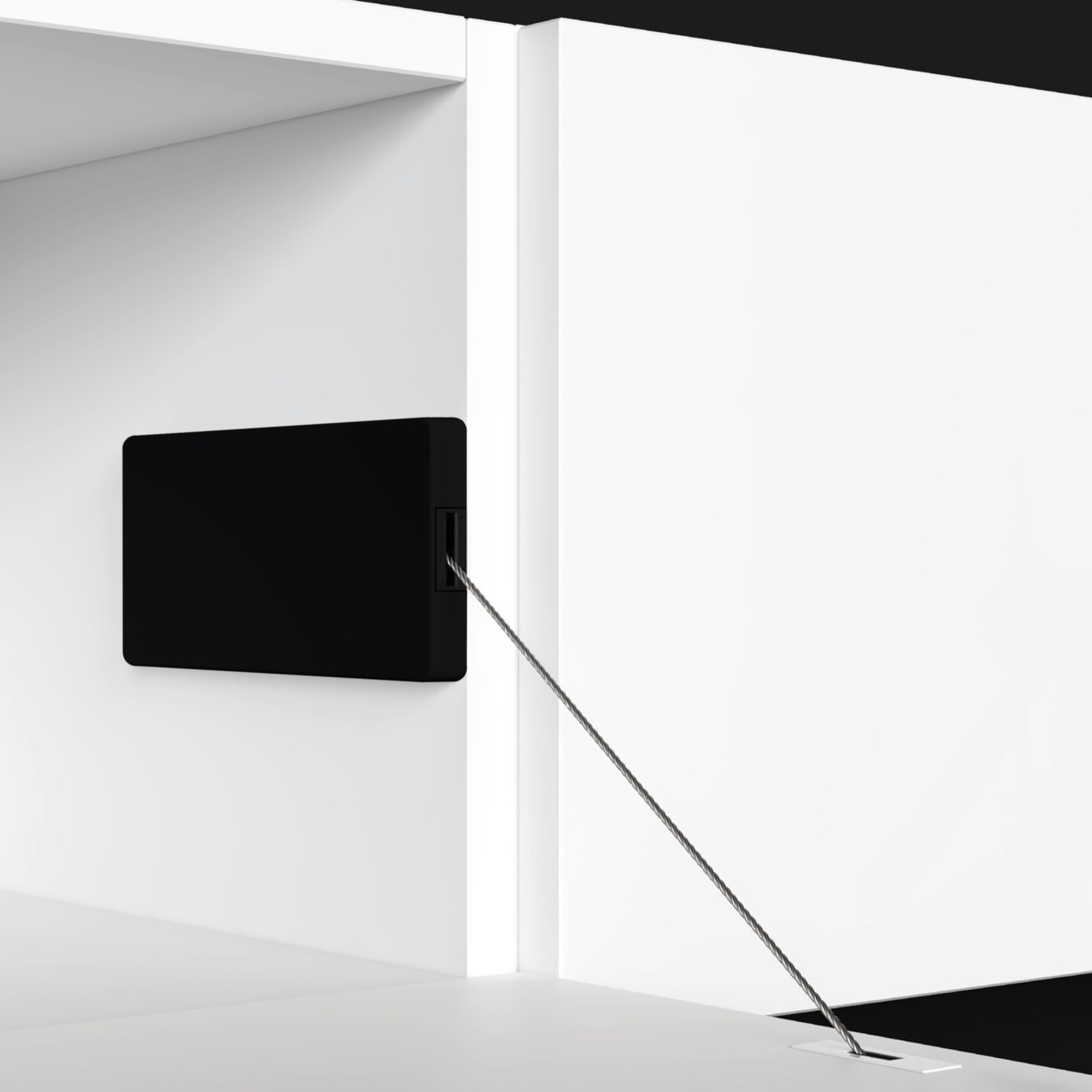

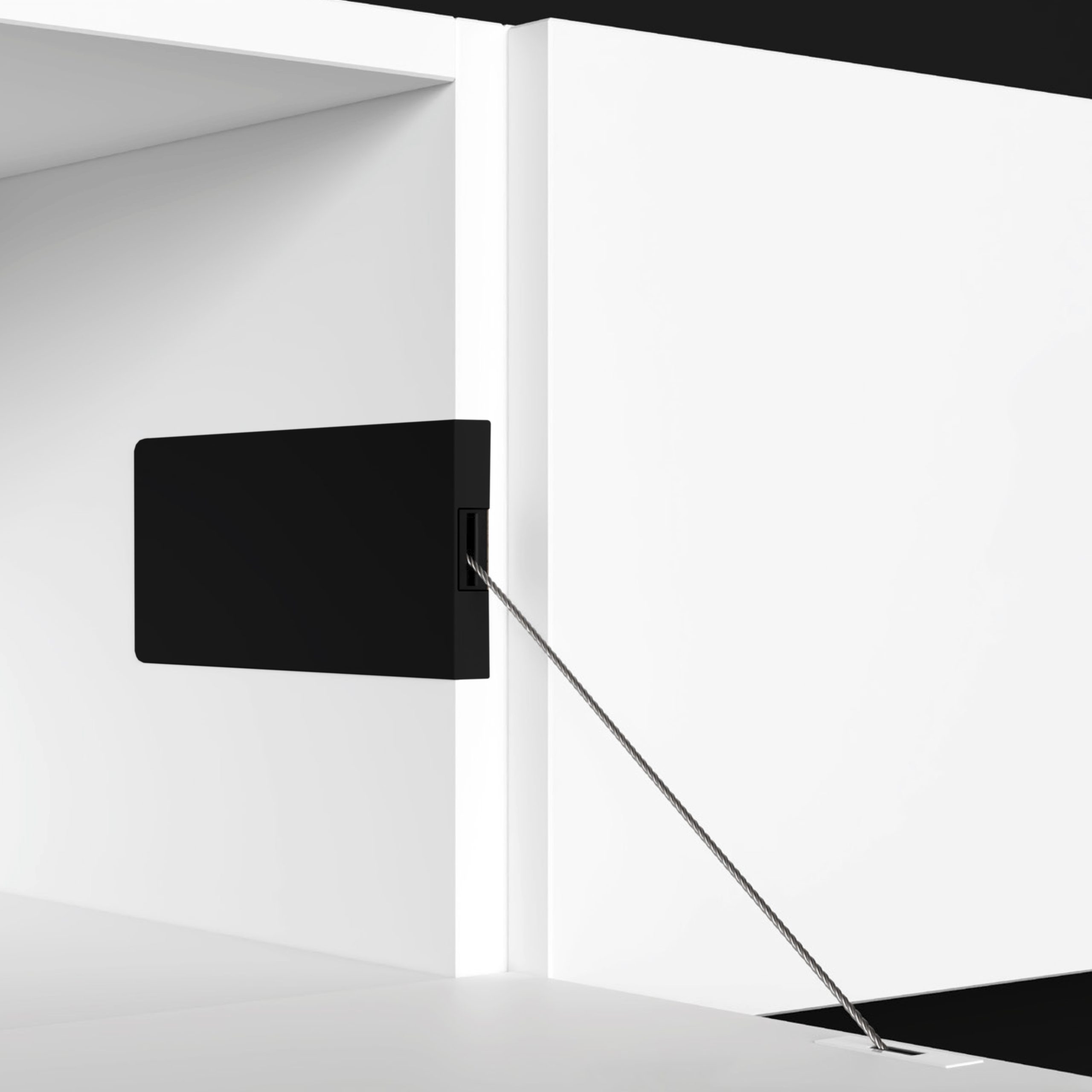

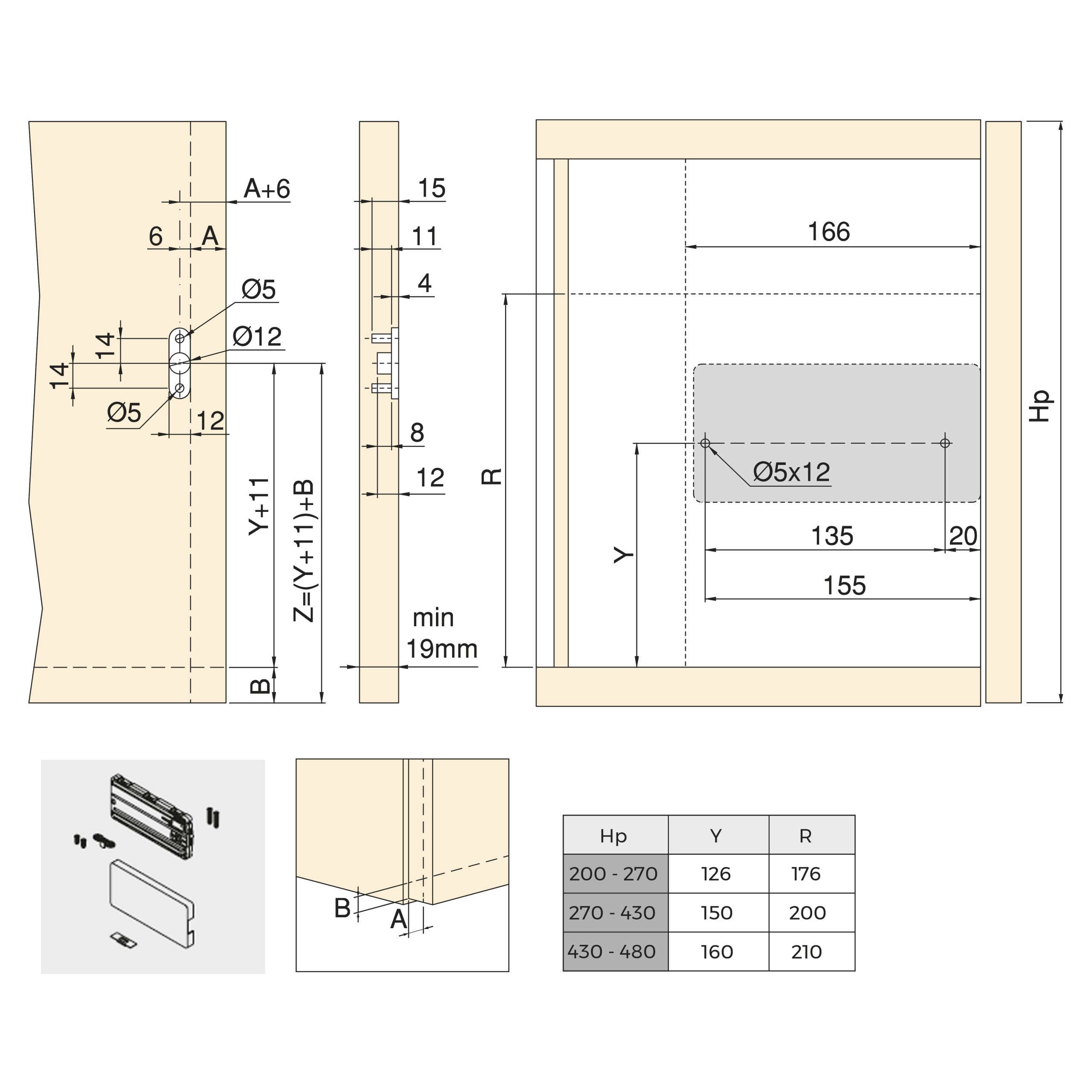

  • For precise installation of hinges and trim covers (not included) that allow mounting on the surface or embedded in the side of the module, which reduces the visual impact for total integration into the furniture.
  • It is a mechanism without a hand (ambidextrous), which can be mounted interchangeably on the right or left side, made of black plastic.
