Vertex 3D 60kg External drawer, height 242mm
5,645.00 L
Përshkrim

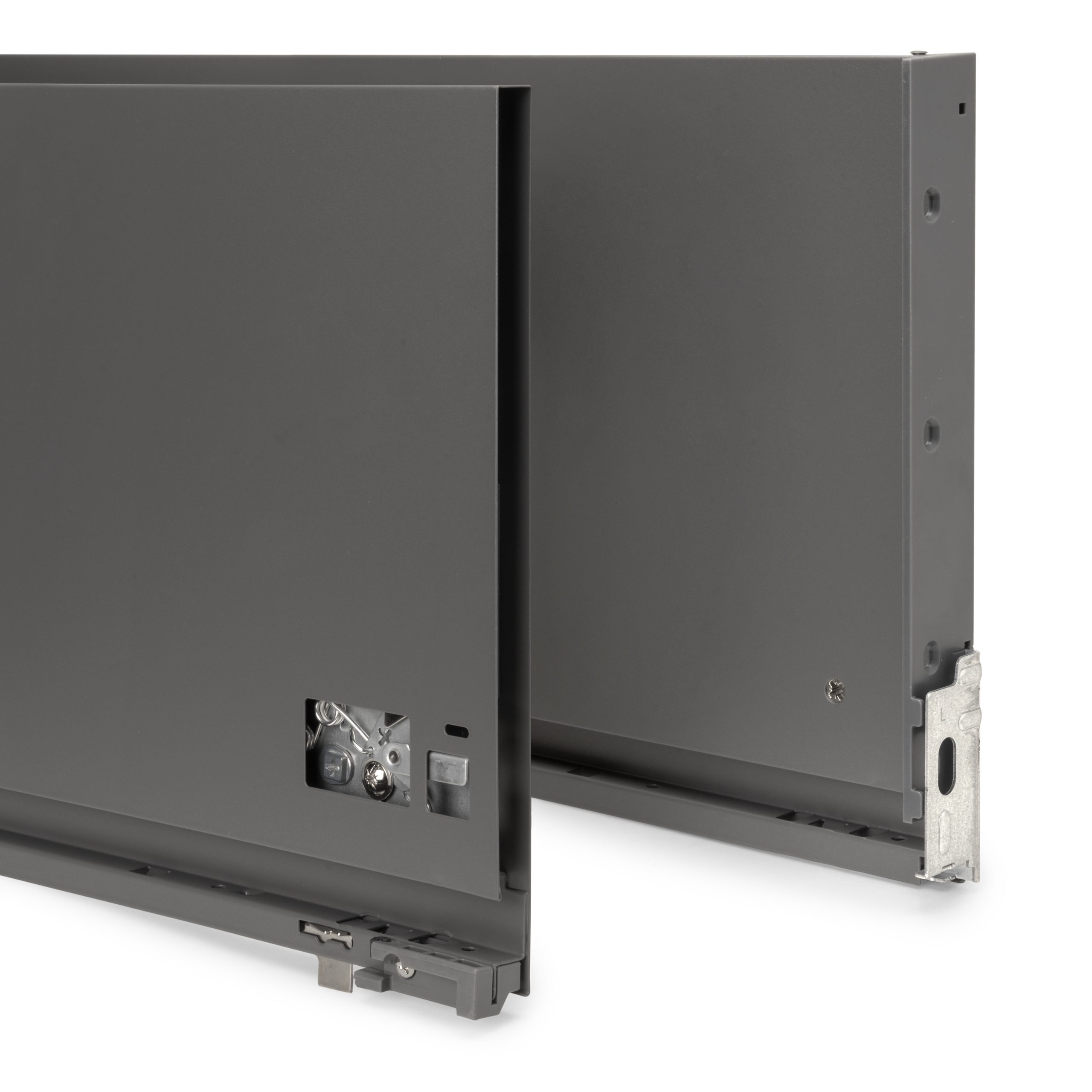

Kit for Vertex drawer with 3D regulation with all the necessary elements for its assembly. It is the optimal solution for your kitchen furniture, with an elegant design, which requires a high load capacity and large interior volume capacity. The drawer front can be adjusted ±2mm vertically, ±1mm horizontally and inclination -1,5/+4mm.
Each kit consists of all the necessary elements for the assembly of a drawer with a height of 242 mm in modules with a side thickness of 16 mm. Units include: two side ribs, a pair of runners with soft closing, a set of cover plates and the fixings for the front of the drawer. The runners are full pull-out synchronised with soft closing, allowing a maximum load of 60 kg.
The metal side sides are made of Steel with a painted finish in anthracite grey, grey or white.
Veçoritë e produktit
- Çmimi për një set
- Paketimi: 1 set/kuti
- Kit of fittings required for the assembly of a metal double-walled outer drawer. For kitchen, bathroom or wardrobe units with a side height of 242 mm.
- It has a 3D front adjustment: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm. Includes synchronised total pull-out runners, with soft closing and load capacity of 60 kg.
- Suitable for installation in modules with a side thickness of 16 mm and a depth of 500 mm.
- Includes: two side sides, a pair of runners with soft closing, a set of cover plates and the fixings for the front of the drawer.
- Made of steel and painted in anthracite grey.
Share This Items :
Përshkrim
Kit for Vertex drawer with 3D regulation with all the necessary elements for its assembly. It is the optimal solution for your kitchen furniture, with an elegant design, which requires a high load capacity and large interior volume capacity. The drawer front can be adjusted ±2mm vertically, ±1mm horizontally and inclination -1,5/+4mm.
Each kit consists of all the necessary elements for the assembly of a drawer with a height of 242 mm in modules with a side thickness of 16 mm. Units include: two side ribs, a pair of runners with soft closing, a set of cover plates and the fixings for the front of the drawer. The runners are full pull-out synchronised with soft closing, allowing a maximum load of 60 kg.
The metal side sides are made of Steel with a painted finish in anthracite grey, grey or white.
